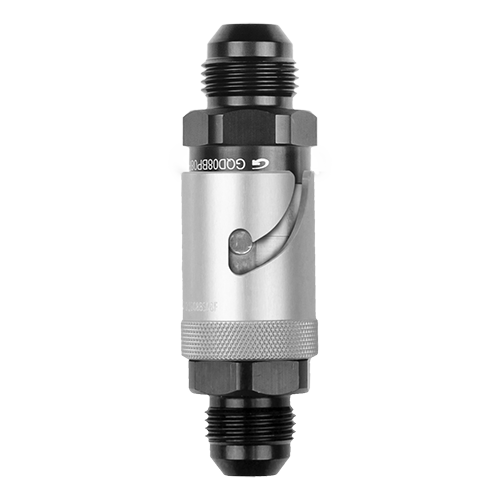

G-LINK QUICK DISCONNECT COUPLING BAYONET 08 - STANDARD

Goodridge G-Link quick disconnect couplings (otherwise known as dry-breaks) are a lightweight coupling that can be disconnected and reconnected in seconds, without the need to re-bleed the system.

G-Link couplings are designed for use with brake lines, fuel lines, oil lines and pneumatics.

There are two types of G-Link available, ‘bayonet’ and ‘pull type’, both with a range of seals to suit different applications.

These bayonet type use a locking mechanism, designed for single handed operation, and are decoupled with a 'push and twist’ of the outer sleeve with no separate actuation required for operation.

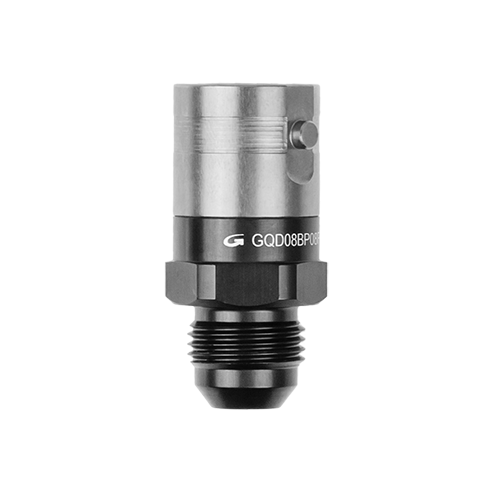

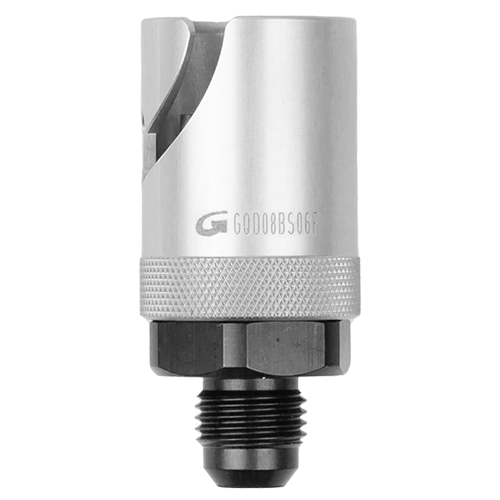

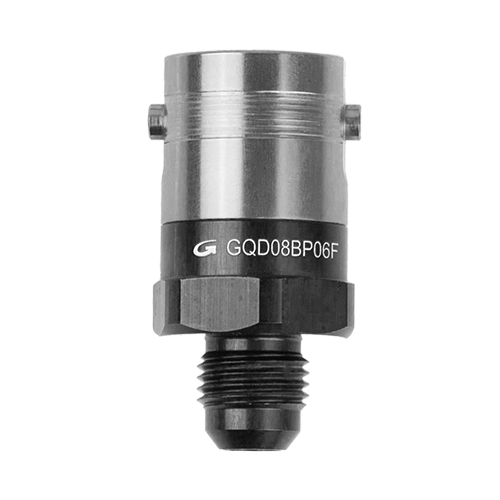

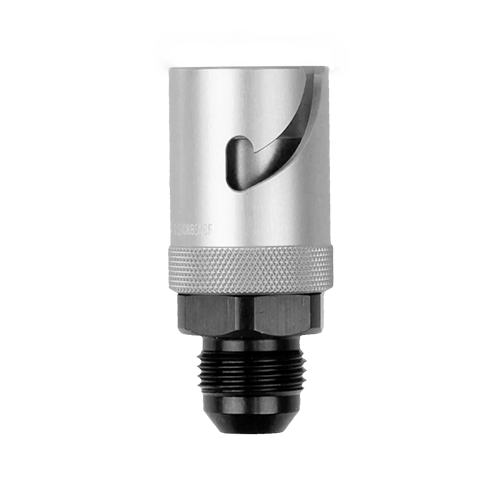

Both halves, plug and socket, are equipped with self-acting valves to stop fluid loss and air ingress.

They can hold pressure up to 200 bar (03), 150 bar (05) & 100 bar (08) and are available in JIC/UNF AN-03, AN-04, AN-06 & AN-08 thread fitments.

Technical Information:

*Ensure you select the correct seal type for your fluid application

For further technical information please check the Goodridge Performance Parts catalogue, which is available to download on www.goodridge.com, or contact our technical customer service team.

**Goodridge G-Links are designed & developed for motorsport and off-road use only**
